Understanding the Key Differences Between Cable Assemblies and Wire Harnesses

Understanding the Key Differences Between Cable Assemblies and Wire Harnesses

The main difference between cable assemblies vs wire harnesses lies in how they are made and used. Cable assemblies provide strong protection in tough environments, while wire harnesses help keep wires organized and neat. Choosing the right option between cable assemblies vs wire harnesses improves performance, reduces errors, and speeds up project completion. Companies with rigorous quality checks, skilled design teams, and reliable supply chains ensure projects succeed by delivering on time and saving costs. Selecting the appropriate solution between cable assemblies vs wire harnesses is crucial for specialized tasks and minimizing issues in demanding factory settings.

Key Takeaways

Cable assemblies protect well from heat, water, and damage. They work best in hard places like factories, planes, and the military.

Wire harnesses keep wires tidy and neat. They fit well in small spaces and inside cars or home machines.

You should pick the right one for your project’s needs. Think about how strong, flexible, small, or cheap it should be. This helps things work better and stops mistakes.

Cable assemblies cost more at first but last longer. They also need less fixing. Wire harnesses are cheaper and easy to put in, but may need more care.

You can change connectors, lengths, and materials for both. This helps them fit special jobs and makes systems work better.

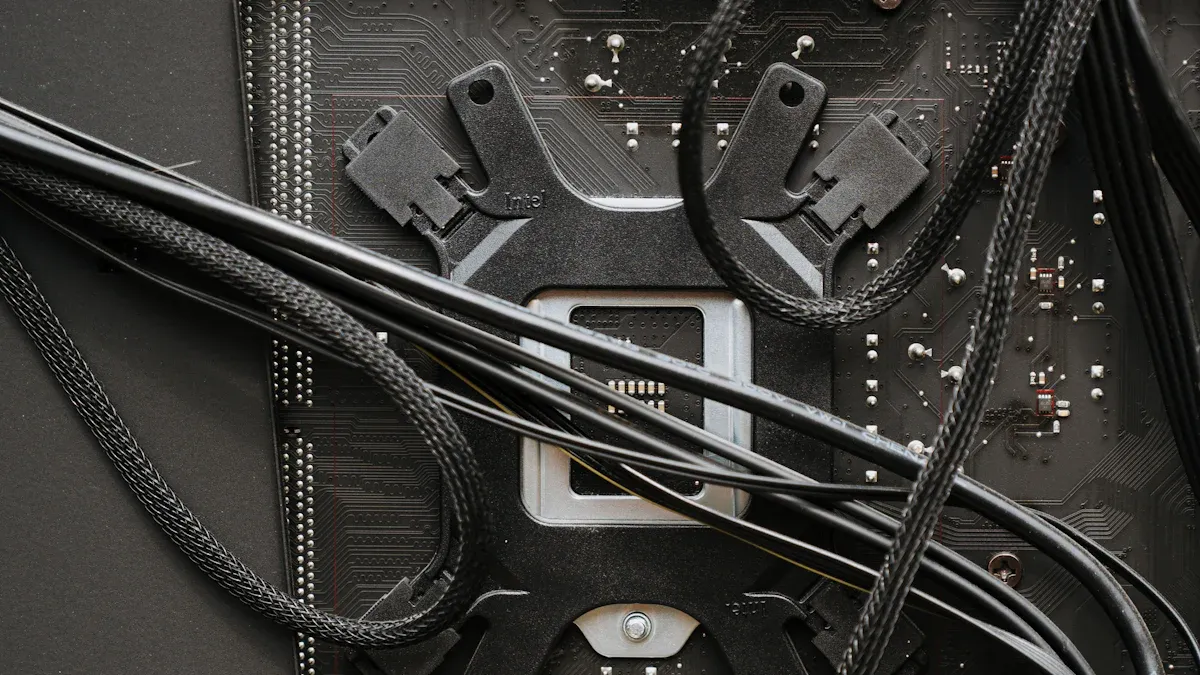

Cable Assemblies vs Wire Harnesses

Cable Assemblies vs Wire Harnesses


Cable Assemblies Defined

A cable assembly is a bunch of wires or cables grouped together. They are covered by one thick outer layer. The IPC/WHMA A-620E-2022 standard explains cable assemblies as bundles twisted or braided inside a strong cover. This cover keeps the wires safe from heat, dust, water, and damage. Makers use copper or copper alloys for the wires. The insulation is made from rubber or plastics like PVC and fluorocarbons. Shielding, like braided or foil wraps, stops electromagnetic noise. Cable assemblies often have special connectors and strain relief parts to stop breaking at the ends. These assemblies go through tough tests to make sure they work well and are safe.

Component

Typical Materials / Methods

Purpose / Notes

Conductors

Copper, copper alloys

Carry electricity; alloys make them harder and stronger

Insulation

Silicone, neoprene, PVC, FEP, PTFE, ETFE

Keep electricity inside, stay flexible, resist heat and chemicals

Shielding

Braid, foil, spiral

Block unwanted noise; give best protection and flexibility

Strength Members

Aramid fiber (Kevlar)

Make cables stronger and help wires not stretch

Termination Methods

Crimping, soldering

Make sure wires connect tightly

Strain Relief

Overmolds, heat-shrink tubing, clamps

Stop cables from breaking at the ends

Sealing

Overmolds, adhesive-lined heat-shrink tubing

Keep out water and other liquids

Cable assemblies are used in places where things must work well, like airplanes, the military, phones, and medical machines. Their strong build makes them good for tough places where protection matters most.

Wire Harnesses Defined

Wire harnesses are neat groups of single wires, each with its own cover. They are held together with ties, sleeves, or sheaths. Standards say wire harnesses help send power or signals and keep wires tidy. The wires are usually copper or aluminum. They are covered with things like PVC or XLPE. Connectors at the ends make it easy to add them to other systems. Covers, often made from PVC or heat-shrink tubing, give some protection from scratches and small dangers.

Note: Wire harnesses make putting things together easier and help stop mistakes. They keep many wires together, which helps systems work better and makes fixing things simpler.

Wire harnesses are found in cars, electronics, home machines, and factory tools. They work best inside where cases or boxes protect them more.

Key Differences

The main difference between cable assemblies and wire harnesses is how they are built, protected, and used. Cable assemblies have one tough cover that protects all the wires inside from hard conditions. This gives better safety from heat, shaking, water, and chemicals. Wire harnesses group wires with their own covers and focus on keeping things neat, not on strong protection.

Aspect

Cable Assemblies

Wire Harnesses

Composition

Wires or cables put together inside one strong sleeve

Single wires with their own covers, tied or sleeved together

Protective Features

Strong safety from heat, rubbing, shaking, and chemicals

Basic safety, mostly for neatness and small dangers

Connectors

Usually have plugs or connectors at both ends

Many ends for different jobs

Intended Application

Used where things must work well in hard or tricky places

Used to keep wires neat, especially in small spaces

Focus

Made for safety and lasting a long time

Made for neatness and easy setup



Cable assemblies are best for rough, outdoor, or factory places where wires face heat, water, dust, and shaking.

Wire harnesses are better for inside or safe places, like in cars or home machines, where the main goal is to keep wires neat and easy to put in.

When you compare cable assemblies and wire harnesses, what you need for your project is most important. Cable assemblies last longer and protect better, but they are heavier and cost more. Wire harnesses are easier to use and cheaper, so they are good for simple jobs or tight spaces.

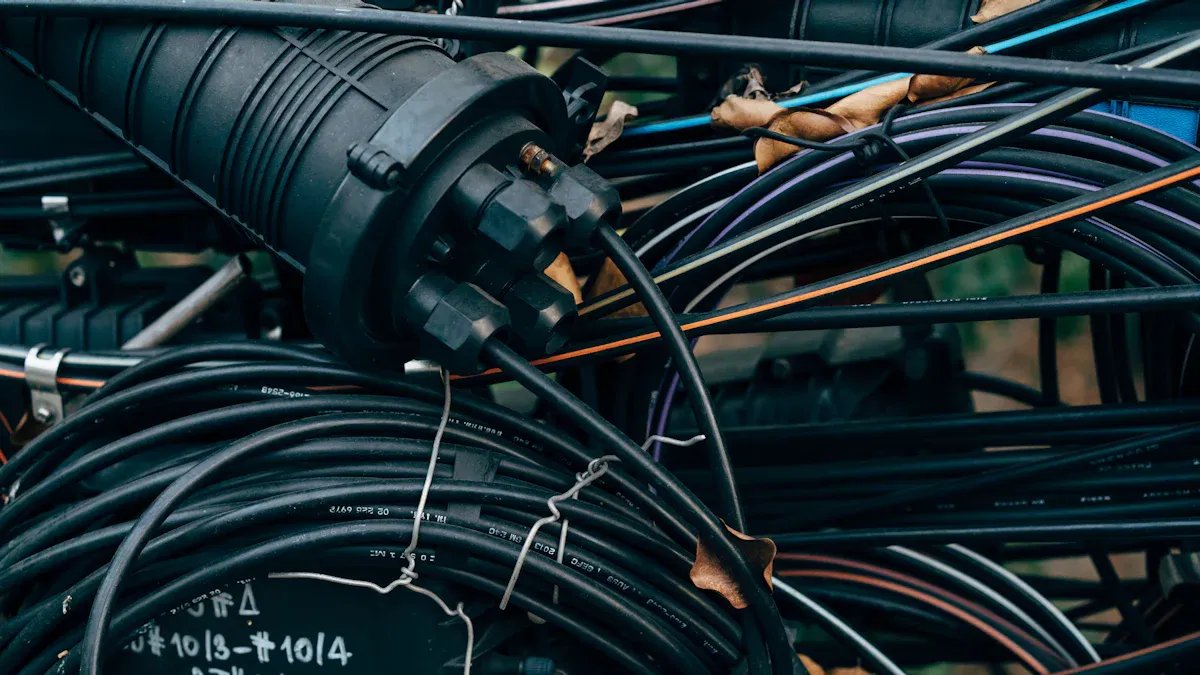

Structure

Cable Assembly Components

Cable assemblies have many important parts. Each part helps keep the assembly safe and working well.

Conductors: Makers use copper or copper alloys for the wires. These metals let electricity flow easily and make the wires strong.

Insulation: Silicone, PVC, and PTFE cover the wires. This layer keeps electricity inside and protects from heat and chemicals.

Shielding: Some cable assemblies have braided or foil shielding. This layer stops unwanted signals and keeps the signal clear.

Strength Members: Some assemblies use aramid fibers like Kevlar. These fibers stop wires from stretching or breaking.

Connectors and Terminals: Good connectors make sure the ends stay attached. They help connect the assembly to other things.

Strain Relief and Sealing: Overmolds, heat-shrink tubing, and clamps protect the cable ends. These parts stop wires from breaking and keep out water or dust.

Tip: The materials used in each part change how tough, bendy, or strong the cable assembly is. For example, PTFE insulation can handle high heat. Strong connectors help the assembly work well in hard places.

Wire Harness Components

Wire harnesses use different parts to keep wires neat and safe. Each part helps the harness work well where it is used.

Component

Description & Materials

Contribution to Performance

Electric Wires and Cables

Copper or aluminum wires with insulation like PVC or Teflon; sometimes shielding is added

These wires carry electricity. The materials change how well they work and how flexible they are.

Connectors and Terminals

Connectors, pins, sockets, crimps, or soldered ends

These parts make sure wires connect well and are easy to put together or take apart.

Cable Management

Cable ties, clips, mounts, heat shrink tubing, conduits, trays, grommets, tapes, labels

These items keep wires neat and safe. They stop wires from getting tangled or pulled.

Protective Sheathing

PVC, polyethylene, low smoke zero halogen, PTFE (Teflon), rubber

This cover keeps wires safe from damage and makes them last longer.

The materials picked for wire harnesses are very important. Pure copper lets electricity flow better. Silicone or PTFE insulation helps wires handle heat and bend without breaking. Covers like PVC or polyethylene make wires last longer and keep them safe. Checks and tests make sure each harness works well and meets rules.

Functions

Protection and Durability

Cable assemblies and wire harnesses have different jobs for protection and strength. Cable assemblies work well in tough places. Makers cover many wires with thick, strong materials like vinyl or thermoplastics. This keeps the wires safe from water, heat, rain, dust, and other dangers outside. Some cable assemblies have extra covers that stop damage from pulling or bending. These features make cable assemblies great for important jobs in defense, planes, hospitals, and metal factories. They can handle more electricity and last longer in hard places.

Wire harnesses give simple protection. They use covers like synthetic yarn or electrical tape. These covers help a little with heat and water but are not as strong as cable assemblies. Wire harnesses mostly stop dust and short circuits. They work best inside, where there are fewer dangers.

Cable assemblies:

Have thick, strong covers for better safety.

Keep out water, heat, and damage.

Are good for outside and busy places.

Wire harnesses:

Use lighter covers for simple safety.

Mostly stop dust and small problems.

Work best inside, where it is safe.

Organization and Routing

Wire harnesses are very good at keeping wires neat and easy to follow. They group and label wires, so workers can put in and fix equipment faster. In cars and planes, there are lots of wires and connectors. Wire harnesses make these systems easier by tying wires together and leading them along planned paths.

Today, engineers use special tools to plan wire harnesses with printed circuit boards (PCBs). This helps teams work together, make fewer mistakes, and finish faster. Computers can also help plan the best paths for wires, making them shorter and sharing space. These new ways help teams avoid mistakes and save money.

A good wire harness helps the system work well, stay safe, and be easy to build. Planning early makes sure the wires match the design, so there are fewer problems and better results. Cable assemblies can also keep wires neat, but they focus more on keeping wires safe than on fitting into big systems.

Note: Keeping wires neat and planned in wire harnesses saves time, cuts costs, and makes electrical systems better.

Cost

Upfront Cost

Cable assemblies cost more when you first buy them. Makers use stronger stuff and add more layers to protect the wires. They also put in special connectors and shielding. These things make the price go up. Companies pick cable assemblies for jobs that need to be very safe and last a long time. The higher price is worth it in hard places.

Wire harnesses are cheaper to make. They use less material and have simple designs. Most wire harnesses only need basic covers and easy connectors. This makes them good for projects with small budgets or less danger. Many companies use wire harnesses in cars, home machines, and electronics where it is safe and dry.

Feature

Cable Assemblies (������)

Wire Harnesses (��)

Material Quality

High

Moderate

Protective Layers

Multiple

Few

Connector Complexity

Advanced

Basic

Initial Investment

Higher

Lower

Tip: Teams should look at what the project needs and how much money they have. Paying more at first for cable assemblies can stop problems later.

Maintenance and Replacement

Cable assemblies last longer because they are built strong. They can handle water, heat, and chemicals. This means teams do not have to fix or change them often. In factories or outside, cable assemblies can work for years without problems.

Wire harnesses need more care. Their covers are lighter and wear out faster. Teams might have to check and change them more, especially in busy or hot places. Fixing them is easy, but doing it a lot can cost more over time.

Cable assemblies: Need less fixing, last longer, good for tough places.

Wire harnesses: Need more checks, easy to fix, best for safe indoor spots.

Note: Picking the right one can save money over time. Teams should think about both the first price and the cost to keep things working.

Flexibility

Physical Flexibility

Cable assemblies and wire harnesses bend in different ways. Cable assemblies have a thick cover around all the wires. This strong jacket keeps the wires safe but makes them stiff. It is hard to bend or twist a cable assembly. This helps it last longer in rough places. But, it can be tough to put in small or sharp spaces.

Wire harnesses use lighter covers and group wires together. Each wire has its own cover. They use ties or sleeves to hold the wires. This lets each wire move more easily. Wire harnesses bend and twist without much trouble. They fit well in tight or tricky spots inside machines. Their bendy shape is good for jobs where wires must move or turn a lot.

Tip: If wires need to go through tight or winding paths, wire harnesses are better than cable assemblies.

Space Considerations

Space inside machines is often very limited. Wire harnesses help save space by keeping wires neat with light covers or ties. Each wire keeps its own cover, and they are grouped only as needed. This lets engineers plan the shortest and best paths for wires. So, wire harnesses fit well in crowded boxes or devices.

Cable assemblies put all wires in one thick cover. This makes them bigger and takes up more room. The extra cover is good for tough places but can be a problem when space is small. Teams pick wire harnesses when they need to save space and keep things tidy inside.

Feature

Cable Assemblies

Wire Harnesses

Space Usage

More space needed

Less space needed

Flexibility

Less flexible

More flexible

Best Use

Harsh environments

Tight or complex spaces

Note: Picking cable assemblies or wire harnesses depends on how much protection you need and how much space you have.

Customization

Cable Assembly Options

Cable assemblies can be made in many different ways. Engineers pick the cable length they need, from very short to over 10 meters long. They choose connector types like RJ45, DB9, BNC, or SMA. They can also pick if the connector is male or female and how the pins are set up. Some cable assemblies have shielding, and some do not. Shielding helps stop unwanted electrical noise and keeps signals clear. This is important where there is a lot of interference.

The outside jacket can be made from different materials. Choices like PVC, plenum, or polyethylene give different levels of bendiness, heat safety, and strength. Other features include special latches, custom pin setups, and labels to help tell cables apart. Engineers start by looking at what the project needs, like voltage, where it will be used, and how much space there is. Then they pick the best materials and connectors for the job.

Customization Aspect

Options Available

Length

Custom lengths (1–10+ meters)

Connectors

Many types and genders

Shielding

Shielded or unshielded

Jacket Material

PVC, Plenum, PE

Features

Latches, pin-outs, labels

Custom cable assemblies make installation faster and help everything fit right. This makes the system work better and last longer.

Wire Harness Options

Wire harnesses can also be changed to fit special jobs, like in cars or airplanes. Designers pick connectors by type, size, shape, number of pins, and color. Labels can be added to help find wires quickly. Shielding can be foil, braided, or both to block electrical noise. Wires are cut and stripped to the exact length needed. They are bundled with cable ties, lacing, or heat-shrink tubing.

Special materials are used for tough places. High-temperature insulation keeps harnesses safe in engines. Waterproof jackets and sealed connectors keep water out in outdoor or boat settings. Oil and corrosion-resistant materials like PTFE or FEP work well near chemicals or fuel. Heavy-duty harnesses are made stronger for hard jobs. Designers think about voltage, current, space, and how bendy the harness needs to be.

Connectors: Custom types, sizes, shapes, and labels

Shielding: Foil, braided, or combination

Bundling: Cable ties, lacing, heat-shrink tubing

Materials: High-temp, waterproof, oil/corrosion-resistant

Compliance: Meets standards like UL, ISO 9001, RoHS

Custom wire harnesses make sure each job gets the right fit and works well, whether in cars, planes, or big machines.

Applications

Applications


Industrial and Harsh Environments

Many jobs happen in places that are tough on electrical systems. Cable assemblies are very important in these places. Companies that make planes, military gear, factory robots, big trucks, and medical machines use cable assemblies. These help keep signals and data moving without problems. These places can have water, hot or cold weather, dust, chemicals, oil, shaking, loud electrical noise, and sparks. Engineers pick cable assemblies that can handle these dangers. They look at what the cables need to do, like how fast they must work or how much power they carry.

Aerospace and defense need cables that are strong and hard to crush. They often use steel and tough covers.

Factories and big machines need cables that can take hits, chemicals, and big changes in temperature.

Medical machines need cables that work well in clean and safe places.

Using metals like bare copper, tin-plated copper, nickel-plated copper, and other mixes helps stop rust and lets cables work in hot or cold.

Strong parts like aramid fiber and steel make cables last longer and handle pulling or bending.

How the wires are twisted, like rope lay or concentric, helps cables bend and last as long as needed.

Cable assemblies help important machines keep working, even when things get rough. This means less time fixing things and safer work.

Everyday and Consumer Uses

Wire harnesses are found in many things we use every day. They keep wires neat and make putting things together easier and safer. In cars, kitchen machines, gadgets, and medical tools, wire harnesses make wiring simple and lower the chance of problems. Makers change wire harnesses to fit each device, so the wires work well and last longer. This makes things safer by stopping shorts and blocking electrical noise. Wire harnesses also help companies build things faster and cheaper because they are easy to use.

Applications

Benefits

Automotive wiring harnesses

Lowers the chance of short circuits

Aerospace systems

Makes signals better and systems more reliable

Medical equipment

Makes building and fixing easier

Electronics

Cuts down the cost to make things

Appliances

Protects against rubbing, water, and shaking

Wire harnesses are a key part of today’s electronics. They help devices work better and last longer for everyone.

Environmental Impact

Lifespan and Waste

Cable assemblies and wire harnesses both affect the environment. Cable assemblies last longer because they use strong materials. Thick insulation helps them stay good for a long time. This means you do not have to replace them as often. Less replacing means less trash is made. When cable assemblies are old, people can recycle metals like copper. But, thick covers and mixed materials can make recycling harder.

Wire harnesses do not last as long, especially in tough places. Their thin covers wear out quickly, so they need to be replaced more. Throwing away wire harnesses makes more trash. Mixed materials are hard to separate and recycle. Many wire harnesses are shaped to fit certain equipment. They are often deep inside machines, which makes them hard to remove and recycle. Now, companies try to design wire harnesses that are easier to take apart. This helps cut down on waste and makes recycling easier.

Tip: Picking products that last longer and use recyclable materials is better for the planet.

Sustainability

Makers now try to make cable assemblies and wire harnesses greener. They use new insulation made from plants like cellulose or soy protein. These materials break down faster and are safer for nature. Better recycling technology also helps reuse old insulation.

Many companies make smaller, lighter harnesses with thin insulation. This saves materials and makes less trash. Machines now put on insulation more carefully, so less is wasted and quality is better.

Wire harnesses are tricky for recycling because of their shapes and mixed parts. To help, designers make harnesses that are easy to take apart. They use covers and connectors that are easy to tell apart and separate. Computers now help track what materials are used and help companies follow green rules like the EU’s Ecodesign policy.

Plant-based and recyclable insulation is better for the earth.

Easy-to-take-apart designs help recycling.

Machines and computers help make things in a greener way.

Note: Making cable assemblies and wire harnesses in a green way helps the earth and supports recycling.

Choosing the Right Solution

Project Needs

Picking cable assemblies or wire harnesses starts with knowing what your project needs. Every project is different. Some need things to last a long time. Others need wires to bend or fit in small spaces. Some projects need special changes. Engineers should look at these things before choosing:

Make sure all parts can handle the right heat and voltage.

Check if the way you attach things and the connectors stop shaking from causing problems.

See if the wires can stand up to water, soap, grease, and fire.

Make sure the wires follow safety and green rules like IPC/WHMA-A-620, WEEE, REACH, and RoHS.

Think about any extra tests or labels needed, like QSFP, HDMI, or ETL.

If your project needs to be tough, safe, or work in rough places, cable assemblies are a good pick. They have strong covers and keep wires safe. This makes them great for planes, the military, or big machines. If you need wires that are easy to move, fit in tight spots, or change often, wire harnesses work better. Wire harnesses are easy to set up and fit in small places.

Tip: Always pick what matches your project’s voltage, heat, and where it will be used. This helps your project last longer.

Budget and Environment

How much money you have and where the wires will go are important. Cable assemblies cost more because they have extra protection and special parts. They work best where it is hot, wet, dirty, or there is a lot of electrical noise. Spending more at first can mean less fixing and longer use.

Wire harnesses are cheaper and good for projects with less money or easier places. They use simple parts and are quick to make. They work well inside or where you need to save space and move wires around.

Factor

Cable Assemblies

Wire Harnesses

Initial Cost

Higher

Lower

Environmental Fit

Harsh, demanding

Controlled, space-limited

Flexibility

Less flexible

Highly flexible

Customization

Extensive options

Moderate to high

Project leaders should think about how much safety and power they need and how much money they have. For big or tough jobs, cable assemblies are worth the cost. For smaller or simple jobs, wire harnesses save money and are easy to use.

Project managers need to know how cable assemblies and wire harnesses are different.

Wire harnesses help keep wires neat and use less space. They work best inside machines or devices.

Cable assemblies are made to protect wires from tough weather and damage. They last longer in hard places.
It is important to look at what the project needs. Test your designs early. Make sure the wires are the right length and have the right connectors. Talking to experts helps you pick good materials. It also makes sure the assemblies are made well. Careful planning helps projects work well and saves money.

FAQ

What is the main reason to choose a cable assembly over a wire harness?

A cable assembly keeps wires safer from heat, water, and chemicals. Engineers pick cable assemblies when things need to last and stay safe in tough places.

Can wire harnesses be used outdoors?

Wire harnesses are best for inside use. They do not stop water, sun, or hot and cold very well. For outside jobs, cable assemblies are a better and safer pick.

How do engineers decide between a cable assembly and a wire harness?

Engineers look at where the wires will go and what is needed. They pick cable assemblies for rough places. They use wire harnesses to keep wires tidy in safe areas.

Are cable assemblies more expensive to repair than wire harnesses?

Yes, fixing cable assemblies costs more money. They have more parts and thicker covers, so repairs and replacements cost extra.

Can both solutions be customized for unique projects?

Both cable assemblies and wire harnesses can be changed for special jobs. Designers can pick the length, connectors, covers, and labels to match what is needed.



Share:

Contact A Sales Expert

Contact our sales team to discuss tailored solutions for your business needs and questions.

×

Contact Us

*We respect your privacy. When you submit your contact information, we agree to only contact you in accordance with our Privacy Policy.

×

Inquire

*Name
*Email
Company Name
Tel
*Message
*Verify Code

*We respect your privacy. When you submit your contact information, we agree to only contact you in accordance with our Privacy Policy.
