Everything You Need to Know About PCIe 5.0 x16 Riser Cables

In the era of high-performance computing and next-generation graphics cards, the PCIe 5.0 x16 riser cable has become an essential component for flexible chassis layout and stable high-speed transmission. So what exactly is a PCIe 5.0 x16 riser cable, and how can you choose the right one for your system?

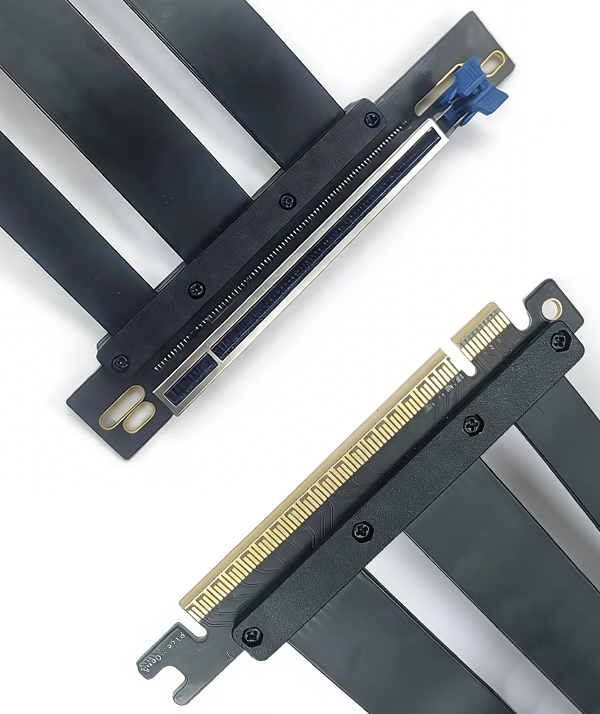

A PCIe 5.0 x16 riser cable is a professional extension cable designed to extend the motherboard’s PCIe slot, supporting the PCIe Gen5 protocol and full x16 channel configuration. It allows graphics cards, high-speed SSDs, network cards and other devices to be installed in more flexible positions without being limited to the direct slot on the motherboard, greatly optimizing chassis space and heat dissipation conditions.

One of the most concerned issues for users is compatibility. The good news is that the PCIe 5.0 standard is backward compatible, which means these cables can work normally with PCIe 4.0 and earlier devices, but the transmission speed will be limited by the version of the device itself. To truly unlock the full bandwidth of PCIe 5.0, your motherboard and terminal equipment such as graphics cards must both support PCIe 5.0.

Many users worry that using a riser cable will cause performance loss. In fact, a high-quality, well-shielded PCIe 5.0 x16 riser cable that has passed strict signal integrity tests will not bring obvious performance degradation. On the contrary, inferior cables with insufficient shielding or too long length are prone to signal attenuation, crosstalk, equipment identification failure, and even system crash or blue screen, especially when matching high-end graphics cards such as RTX 5090, the stability of the cable is particularly critical.

In addition to graphics cards, PCIe 5.0 x16 riser cables are also widely used in high-performance PCIe 5.0 NVMe SSDs, 10G and above high-speed network cards, InfiniBand cards, professional acquisition cards and computing acceleration cards, providing stable high-speed connections for various high-bandwidth expansion scenarios.

When choosing a PCIe 5.0 x16 riser cable, you should focus on the following points: first, confirm whether your platform supports PCIe 5.0; second, choose products from reliable brands with professional technical capabilities; third, pay attention to the shielding performance and production process to reduce electromagnetic interference; finally, under the premise of meeting the installation needs, try to choose a shorter length to minimize the risk of signal attenuation.
