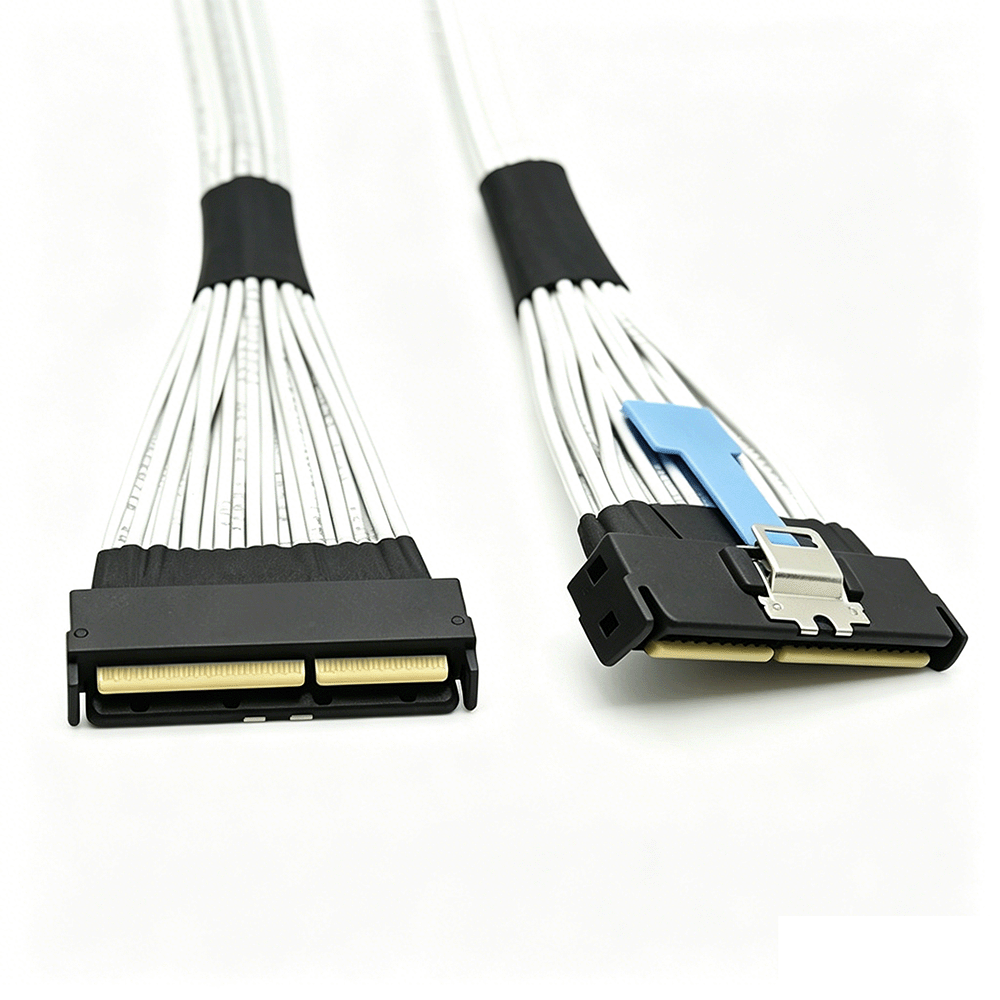

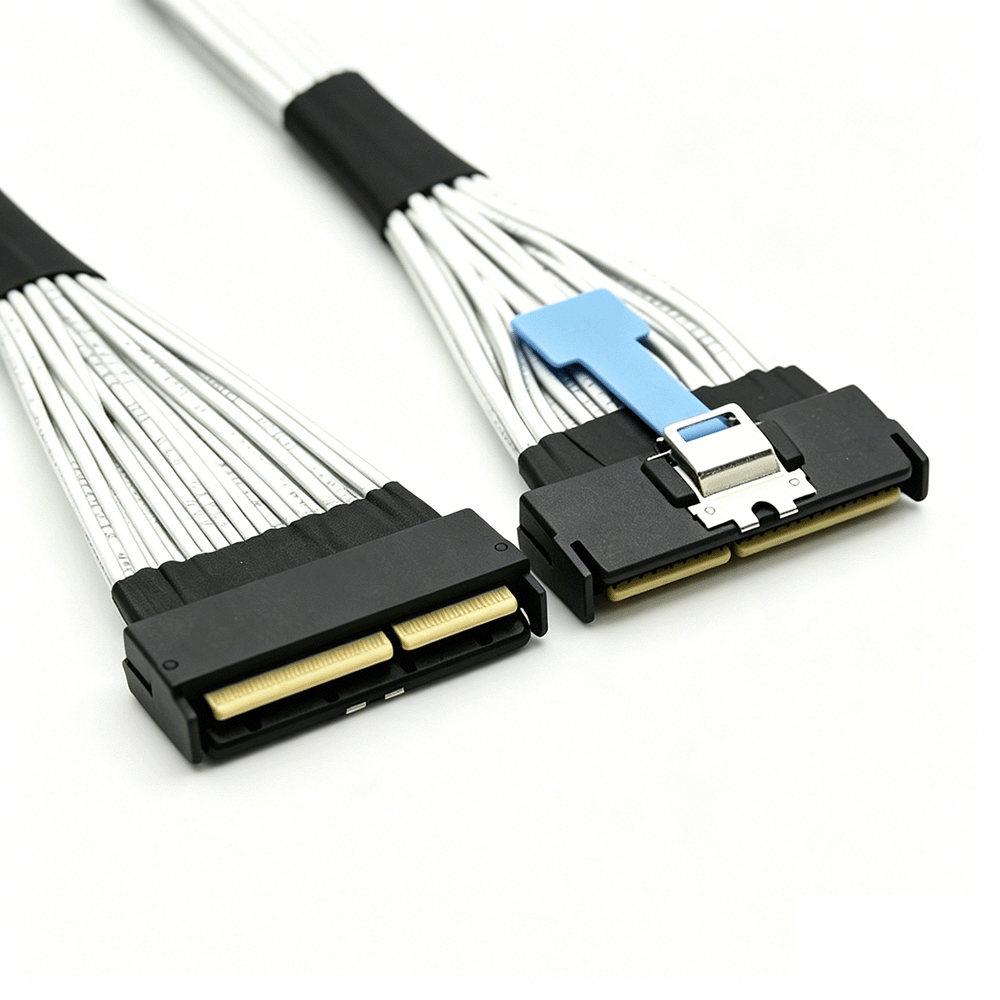

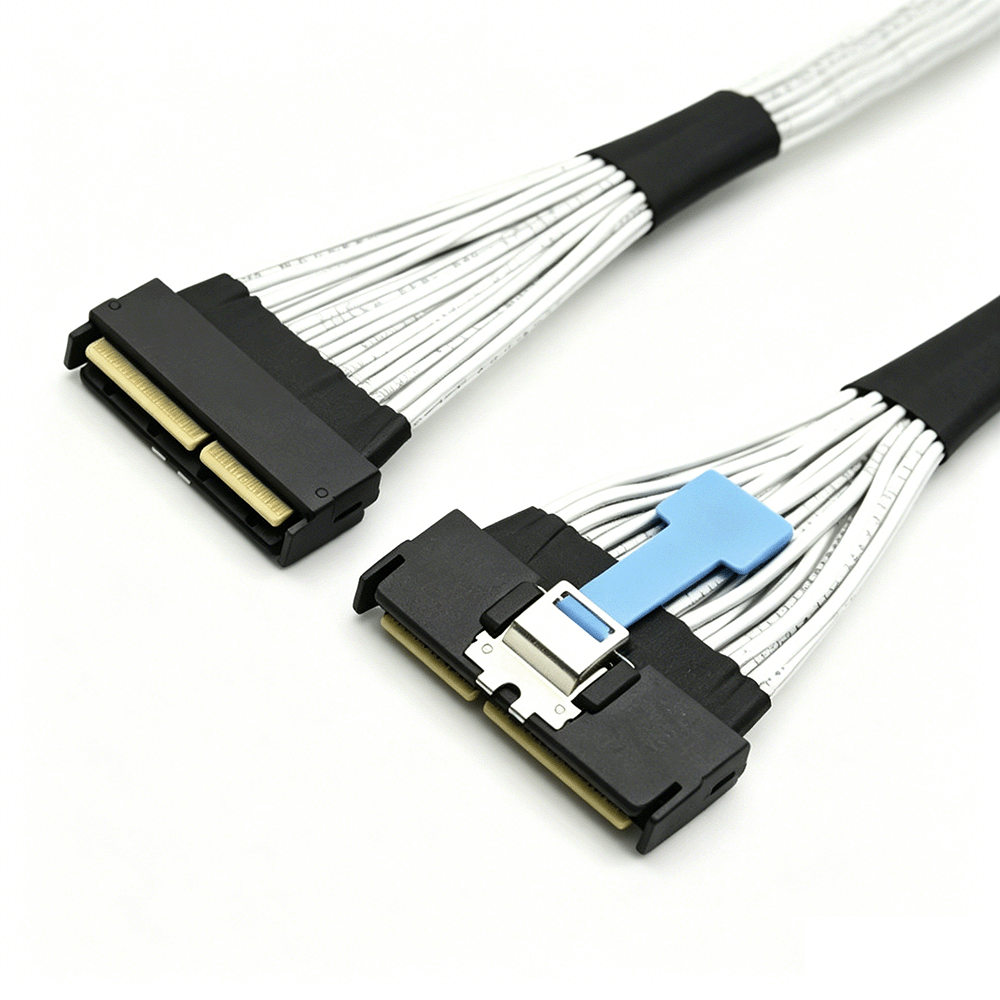

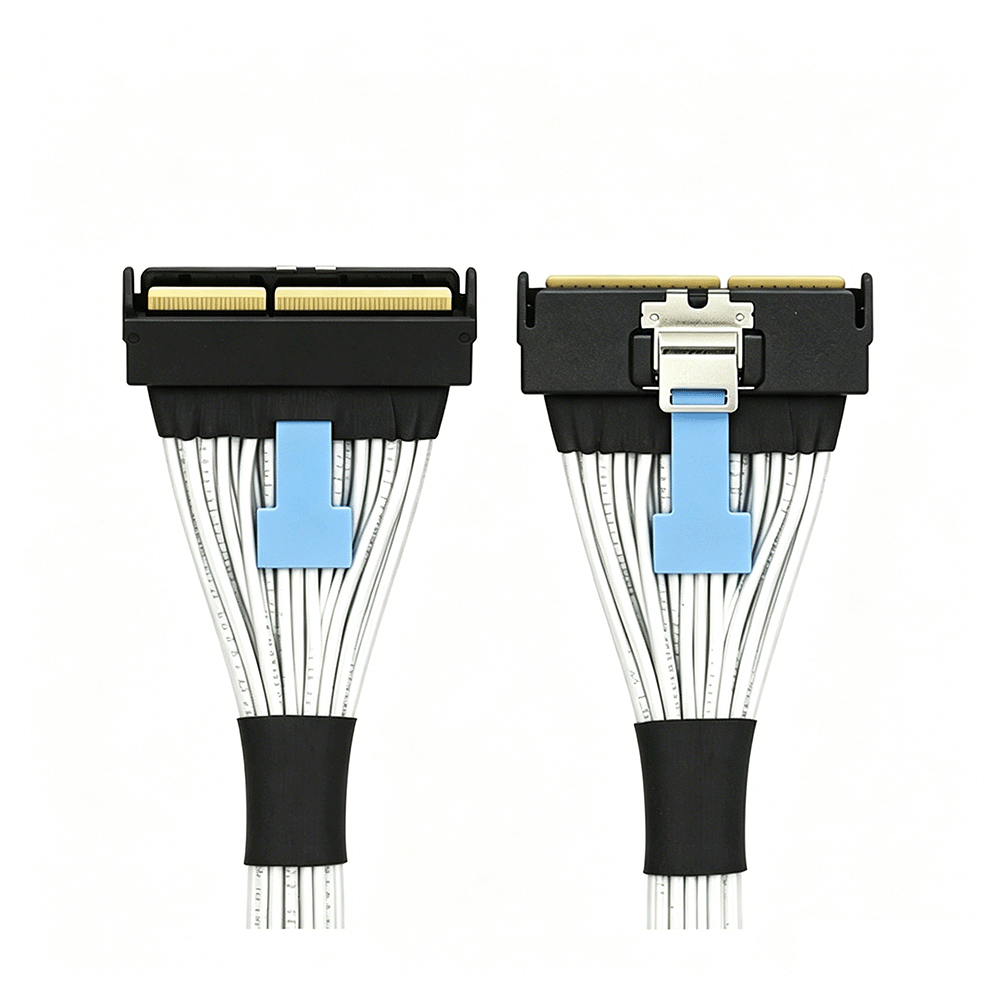

PCIe 5.0 MCIO 16x 124Pin Male to Male Cable

PCIe 5.0 MCIO 16x 124Pin Male to Male Cable

Connect equipment in high performance computing systems and data centers with this MCIO cable. This cable is compatible with 74-pin MCIO equipment, and supports popular data center protocols including PCIe 5.0, SAS 3.0, and Ethernet.

Features and Benefits

1. Adopts compact 0.6mm pin pitch with convenient pull-tab for effortless plugging/unplugging

2. Conforms to official SFF-TA-1016 specification, fully supports PCIe Gen5 & future PCIe Gen6 transmission

3. Precisely engineered for 85-ohm controlled impedance to preserve superior signal integrity

4. ocking Latch: SUS301 stainless steel pull-tab latch (0.25mm thickness), durable for repeated plugging

5. Matches 1.57mm-thick PCB, seamlessly compatible with standard PCIe riser cards

6.  Straight, right angle, side exit and customization cable plug are optional


7. Flexible wire options ranging from 30AWG to 34AWG

8. Supports signaling rates up to PCIe5 32GT/s


Applications/Market

1.  Data center & Networking Equipment

2. Servers/Storage Devices

3. High Performance Computing (HPC)

4.  Switches/Routers

5. Wireless Base Stations and Radios

6. .SAS/SATA/PCIe HBA Interfaces


Electrical Parameters

1. Rated: 30VAC, 0.5A per single contact

2.  Minimum withstand voltage: 300VDC (100ms)

3.  Insulation resistance ≥10MΩ between adjacent pins

4. Temperature and voltage: 80℃ 30V

5. Conductive Resisance :2Ω/MAX

High-Speed Signal Performance

• Meets OCP industry criteria, stable transmission for PCIe 4.0/5.0

• Ready for next-gen PCIe 6.0, supports 56G PAM4 and upcoming 112G PAM4 signal

Environmental Compliance

Fully certified to RoHS 2.0, China RoHS and REACH SVHC standards; low-halogen certification pending.

Product Environmental Compliance

• RoHS2.0: Compliant

• China RoHS: Yes

• REACH SVHC: Yes
